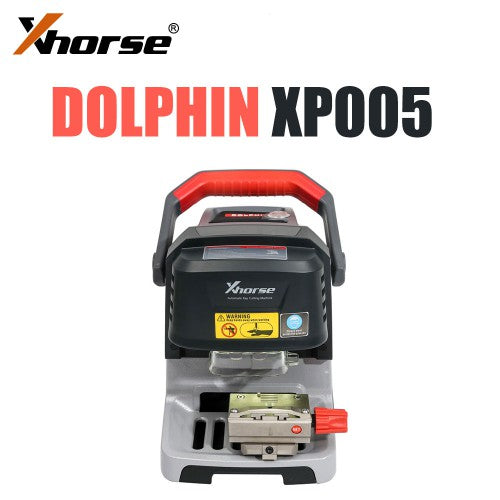

V1.5.7 Xhorse DOLPHIN XP005 Automatic Key Cutting Machine with Battery inside

Product Description

V1.5.7 Original Xhorse Dolphin XP005 Key Cutting Machine Supports IOS & Android

• Xhorse official authorized dealer
• Newest verion: Firmware V1.5.7  Datebase: V85
• Global version, Free Update online, 3 Years Product Warranty
• Lifetime tech support from OBDII365.com
• Free Shipping from EU, UK, No Tax

Xhorse Dolphin XP005 Highlights

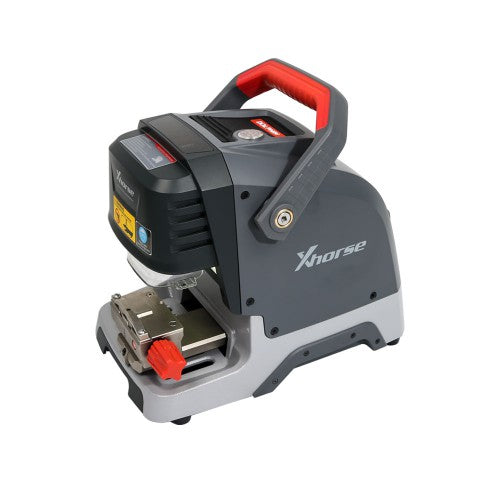

DOLPHIN-XP005 is the latest portable automatic key cutting machine with in-built battery inside.

It has all the capabilities of Condor XC Mini.

Dolphin works on mobile phone application via bluetooth connection.

M1/M2 Jaw comes as standard.

M3/M4 Jaw comes as optional purchase.

Xhorse APP Language: English, Spanish, French, Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese

Dolphin XP005 Version: Update Online

V1.5.1 (2021-04-07)
Add parts of Chinese car models
Fix parts of key data align issue
Fix Honda cycle key data issue

V1.2.7           (2019-11-6)

* This version need to update firmware
* Fix some bugs
* Optimization the slope of track internal
* Optimization the slope and flat of VA2T
* Modified the tail file of HON66 and HU66
* Fixed the top abrasion invalid problem
* Fixed the M1 clamp key cutting error
* Fixed secondary processing cutting problem
* Fixed the cut problem of the customize key data
* Fixed firmware upgrade instability problem
* Fixed the cutting problem of FO21
* Fixed cutting problem of 4 Track external
* Add bluetooth error remind function


Dolphin XP005 Key Cutting Machine Features:

APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations

Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

Standard equipped 2 clamps M1 and M2 with powerful function
Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;

American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update.

Technical service
One-year warranty, free technical support, online service to provide remote control support

Dolphin XP005 Key Cutting Machine Parameters:

Working temperature: -10~50℃
Input voltage: 12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm

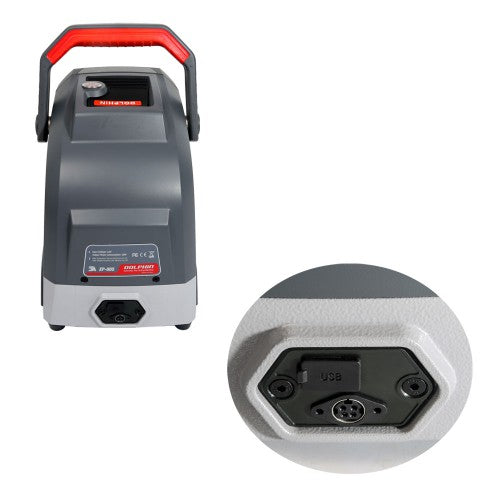

USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg


Dolphin vs Condor XC-Mini

Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet to install APP and get software Data.

How to Update Dolphin XP-005 Database?

1) Enter Dolphin XP-005 main interface and click "Update"
2) Click "Database update"
3) If you find a new version, click "Update" and download the new version.
Click on "OK" after download database success
If cellphone connected by mobile internet data,a prompt saying that download maybe costs data fee,recommend downloading by WIFI.

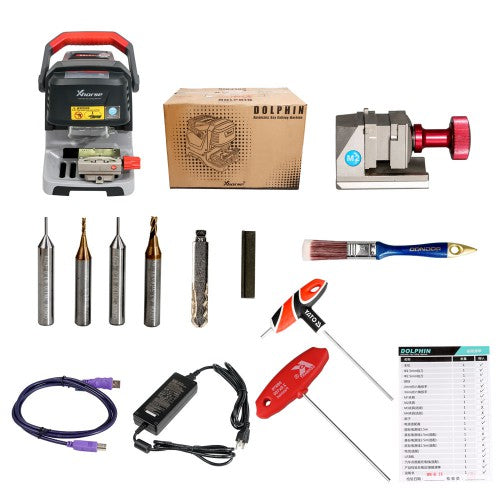

Xhorse Dolphin XP-005 Package List:

1pc x Dolphin XP005 Main Machine
1pc x 2.5mm cutter
1pc x 1.5mm cutter
2pc x Probe
1pc x 2mm Hexagon bar wrench
1pc x 4mm Hexagon bar wrench
1pc x Power Adapter
1pc x Brush

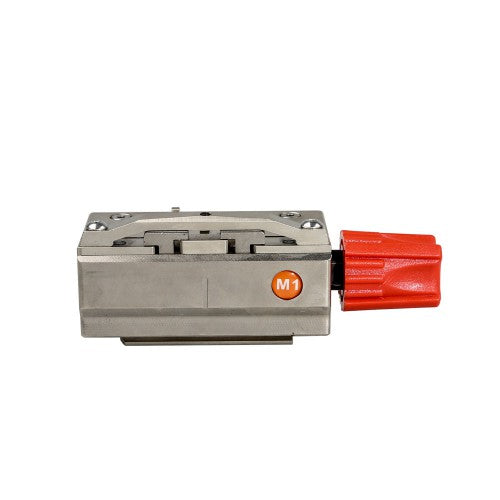

1pc x Clamp M1 & Link Stopper

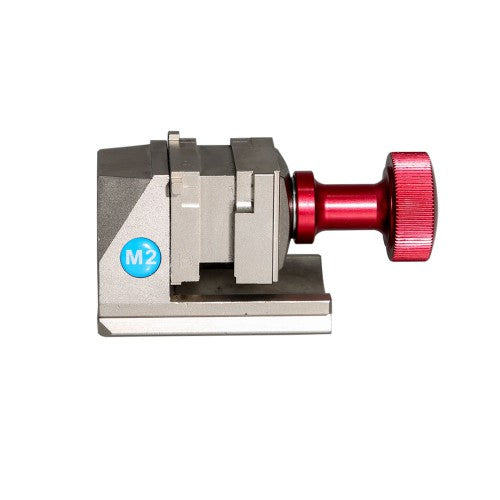

1pc x Clamp M2 & shim
1pc x Clamp M3 (Optional)
1pc x Clamp M4 (Optional)
1pc x Product Quality Certificate
1pc x User Manual
